Adaptor - FWES 2B

Quick Change Adaptor featured with Torque Control from Falcon toolings delivers high machining and tooling performances. The torque control is designed to enhance the tooling outcome and produce the desired product finish. FWES 2B fitted with Quick Change Tapping Chuck ensures high precision machining is achieved within the desired tolerance limit. The torque control with adaptors is used in the tooling operations on CNC Lathe, CNC Milling, Manual Lathe and Drilling Machines. The tap breakages during the changing of chucks are greatly prevented using Quick Change Tapping Chucks.

FWES 2B torque controller maximizes the continuous lathe machining without losing its running speed and accuracy. The CNC torque control adaptor ensures an accurate product finish with the torque adjustment required for varied machining needs. Compared to normal adaptors, Quick Change Adaptors are designed in such a way that they can be changed quickly without losing their accuracy. FWES 2B Adaptors are suitable to hold the Tap ranging from M5 to M24. Depending on the Shank diameter and Tap square size, the Tap Adaptor is selected.

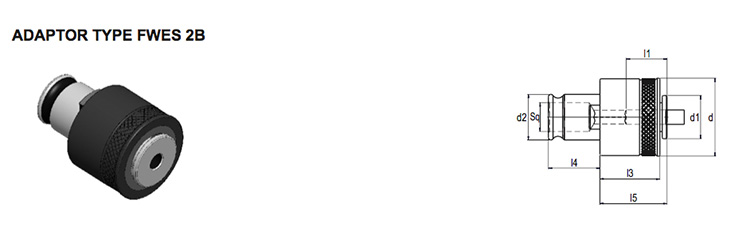

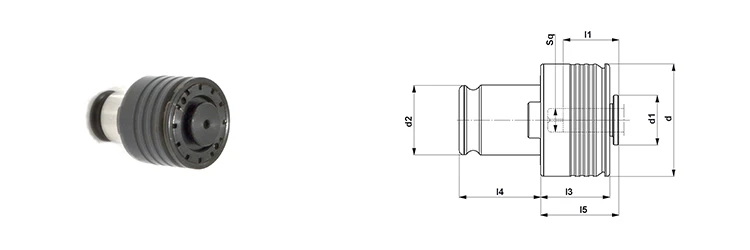

Adaptor Range	Tap Range	d	d1	d2	l1	l3	l4	l5
FWES 2B	M5-M20	50	30	31	30	30.5	36	33



S.no	Part no.	Description	DIA	SQ	Tap Size	Kgs	Group
1	F18823-77127	FWES2B Ø 6 SQ 4.9 M5	6	4.9	M5	0.55	B7000
2	F18823-77128	FWES2B Ø 6 SQ 4.9 M6	6	4.9	M6	0.55	B7000
3	F18823-77129	FWES2B Ø 6 SQ 4.9 M8	6	4.9	M8	0.55	B7000
4	F18823-77132	FWES2B Ø 6.2 SQ 5 M7	6.2	5	M7	0.55	B7000
5	F18823-77133	FWES2B Ø 6.2 SQ 5 M8	6.2	5	M8	0.55	B7000
6	F18823-77134	FWES2B Ø 6.3 SQ 5 M6	6.3	5	M6	0.55	B7000
7	F18823-77136	FWES2B Ø 7 SQ 5.5 M9	7	5.5	M9	0.55	B7000
8	F18823-77137	FWES2B Ø 7 SQ 5.5 M10	7	5.5	M10	0.55	B7000
9	F18823-77138	FWES2B Ø 7.1 SQ 5.6 M10	7.1	5.6	M7	0.55	B7000
10	F18823-77139	FWES2B Ø 8 SQ 6 M11	8	6	M11	0.55	B7000
11	F18823-77140	FWES2B Ø 8 SQ 6.2 M11	8	6.2	M11	0.55	B7000
12	F18823-77141	FWES2B Ø 8 SQ 6.2 M8	8	6.2	M8	0.55	B7000
13	F18823-77142	FWES2B Ø 8 SQ 6.3 M8	8	6.3	M8	0.55	B7000
14	F18823-77143	FWES2B Ø 8 SQ 6.3 M10	8	6.3	M10	0.55	B7000
15	F18823-77144	FWES2B Ø 8.5 SQ 6.5 M12	8.5	6.5	M12	0.55	B7000
16	F18823-77145	FWES2B Ø 9 SQ 7 M12	9	7	M12	0.55	B7000
17	F18823-77146	FWES2B Ø 9 SQ 7.1 M12	9	7.1	M12	0.55	B7000
18	F18823-77147	FWES2B Ø 10 SQ 8 M10	10	8	M10	0.50	B7000
20	F18823-77148	FWES2B Ø 10.5 SQ 8 M14	10.5	8	M14	0.50	B7000
21	F18823-77149	FWES2B Ø 10.5 SQ 8 M15	10.5	8	M15	0.50	B7000
22	F18823-77150	FWES2B Ø 11 SQ 9 M14	11	9	M14	0.50	B7000
23	F18823-77151	FWES2B Ø 11.2 SQ 9 M14	11.2	9	M14	0.50	B7000
24	F18823-77152	FWES2B Ø 12 SQ 9 M16	12	9	M16	0.50	B7000
25	F18823-77153	FWES2B Ø 12.5 SQ 10 M16	12.5	10	M16	0.50	B7000
26	F18823-77154	FWES2B Ø 13 SQ 10 M17	13	10	M17	0.50	B7000
27	F18823-77155	FWES2B Ø 14 SQ 11 M18	14	11	M18	0.48	B7000
28	F18823-77156	FWES2B Ø 14 SQ 11.2 M18	14	11.2	M18	0.48	B7000
29	F18823-77157	FWES2B Ø 14 SQ 11.2 M20	14	11.2	M20	0.48	B7000
30	F18823-77158	FWES2B Ø 15 SQ 12 M20	15	12	M20	0.48	B7000
31	F18823-77159	FWES2B Ø 16 SQ 12 M20	16	12	M20	0.48	B7000
32	F18823-77160	FWES2B Ø 16 SQ 12.5 M22	16	12.5	M22	0.45	B7000
33	F18823-77161	FWES2B Ø 17 SQ 13 M22	17	13	M22	0.45	B7000
34	F18823-77162	FWES2B Ø 18 SQ 14 M24	18	14	M24	0.45	B7000
35	F18823-77163	FWES2B Ø 18 SQ 14.5 M22	18	14.5	M22	0.45	B7000
36	F18823-77164	FWES2B Ø 18 SQ 14.5 M24	18	14.5	M24	0.45	B7000
37	F18823-77165	FWES2B Ø 19 SQ 15 M24	19	15	M24	0.45	B7000
