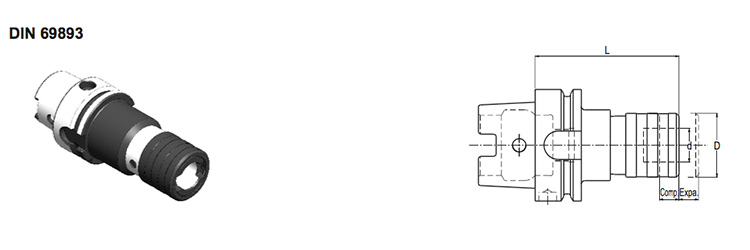

HSK (DIN 69893)

Falcon Toolings manufacture HSK DIN 69893 at high quality and thus enhancing the quick change tapping systems to deliver great performance. FWFLK1 and FWFLK2 quick change HSK DIN are featured with extension and compression holding systems. HSK 63f tool holders are designed to deliver reliable performance when used on HSKA50, HSKA63 and HSKA100 taper spindle machines. HSK 63 tool holder is equipped with tapping chucks to prevent the tap breakage that commonly develops during the chuck changes in the machining process.

HSK spindle machine tool holders from Falcon are suitable to use in Right Hand or Left Hand and Horizontal or Vertical applications. HSK tool holders are designed to enhance high precision when it is used for machining centres, special purposes, drilling and milling machines. The cutting pressure in the chucks can be adjusted with HSK DIN 69893 tool holders to start the tapping cycle without any bottlenecks.

HSK A50 HSK A63 HSK A100

HSK A50 Tapping Chucks

Part No.	Product Name	Taper	D	d.	L	Tap Size	Compression	Expansion	Adaptor Model	Kgs	Group
F1A050X-WFLK1076	HSK A50 TAPPING CHUCK WFLK SIZE 1076	A50	36	19	76	M3 - M12	7.5	7.5	WE1 / WES1B	0.62	B7000
F1A050X-WFLK2123	HSK A50 TAPPING CHUCK WFLK SIZE 2123	A50	53	31	123	M5 - M20	12.5	12.5	WE2 / WES2B	0.93	B7000

HSK A63 Tapping Chucks

Part No.	Product Name	Taper	D	d.	L	Tap Size	Compression	Expansion	Adaptor Model	Kgs	Group
F1A063X-WFLK1081	HSK A63 TAPPING CHUCK WFLK SIZE 1081	A63	36	19	81	M3 - M12	7.5	7.5	WE1 / WES1B	1.12	B7000
F1A063X-WFLK2119	HSK A63 TAPPING CHUCK WFLK SIZE 2119	A63	53	31	119	M5 - M20	12.5	12.5	WE2 / WES2B	1.40	B7000

HSK A100 Tapping Chucks

Part No.	Product Name	Taper	D	d.	L	Tap Size	Compression	Expansion	Adaptor Model	Kgs	Group
F1A100X-WFLK1090	HSK A100 TAPPING CHUCK WFLK SIZE 1090	A100	36	19	90	M3 - M12	7.5	7.5	WE1 / WES1B	2.56	B7000
F1A100X-WFLK2138	HSK A100 TAPPING CHUCK WFLK SIZE 2138	A100	53	31	138	M5 - M20	12.5	12.5	WE2 / WES2B	3.45	B7000
