| Part No. | Product Name | l. | f1 | h1 | f2 | h2 | Inserts 1 | Inserts 2 | Group |
|---|---|---|---|---|---|---|---|---|---|

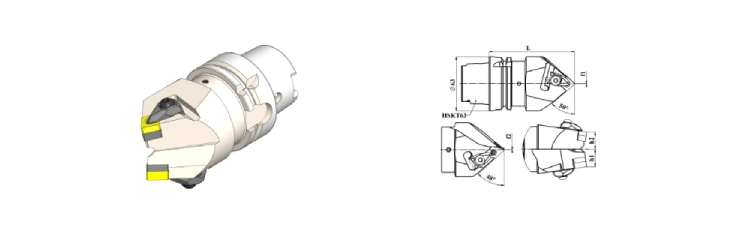

| F1T063X-DDCM1215100 | HSK T63 DCM12DDM15 100 | 100 | 0.9 | 20 | 0.9 | 20 | CN.120408 | DN.150608 | D9900 |
| F1T063X-DDCM1215145 | HSK T63 DCM12DDM15 145 | 145 | 0.9 | 20 | 0.9 | 20 | CN.120408 | DN.150608 | D9900 |
| Part No. | Product Name | L | Inserts | Group |
|---|---|---|---|---|

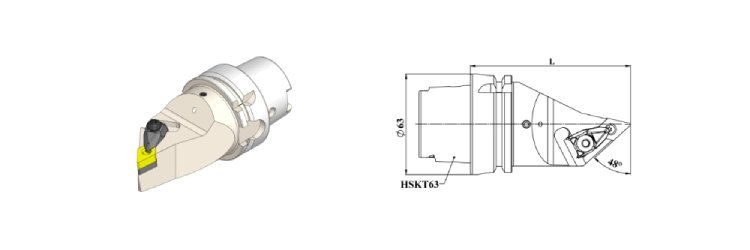

| F1T063X-DDMNL015100 | HSKT63 DDMNL 15 100 | 100 | DN.150608 | D9900 |
| F1T063X-DDMNL015145 | HSKT63 DDMNL 15 145 | 145 | DN.150608 | D9900 |
| Part No. | Product Name | l. | Inserts | Group |
|---|---|---|---|---|
| F1T063X-DCMNN012090 | HSK T63 DCMNN 12 090 | 90 | CN.120408 | D9900 |
| F1T063X-DCMNN012100 | HSK T63 DCMNN 12 100 | 100 | CN.120408 | D9900 |
| F1T063X-DCMNN012145 | HSK T63 DCMNN 12 145 | 145 | CN.120408 | D9900 |
| Part No. | Product name | l. | Inserts | Group |
|---|---|---|---|---|
| F1T063X-DDNNN015090 | HSK T63 DDNNN 15 090 | 90 | DN.150608 | D9900 |
| F1T063X-DDNNN015100 | HSK T63 DDNNN 15 100 | 100 | DN.150608 | D9900 |
| F1T063X-DDNNN015145 | HSK T63 DDNNN 15 145 | 145 | DN.150608 | D9900 |
