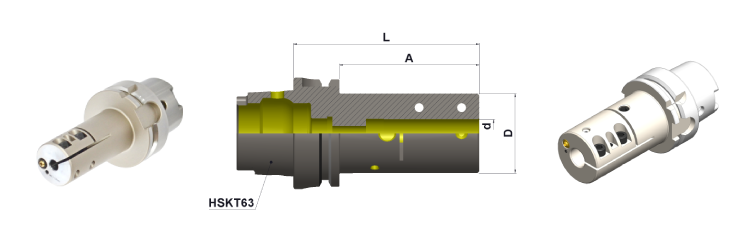

| Part No. | Product Name | D | d. | A | L | Screw | Kgs | Group |
|---|---|---|---|---|---|---|---|---|
| F1T063X-EMT06100 | HSK T63 EM HOLDER WITH SLITTING 06 100 | 32 | 6 | 74 | 100 | M5X16 | 1.13 | B2200 |
| F1T063X-EMT08100 | HSK T63 EM HOLDER WITH SLITTING 08 100 | 34 | 8 | 74 | 100 | M5X16 | 1.20 | B2200 |
| F1T063X-EMT10100 | HSK T63 EM HOLDER WITH SLITTING 10 100 | 45 | 10 | 74 | 100 | M6X16 | 1.56 | B2200 |
| F1T063X-EMT12100 | HSK T63 EM HOLDER WITH SLITTING 12 100 | 45 | 12 | 74 | 100 | M6X16 | 1.54 | B2200 |
| F1T063X-EMT16105 | HSK T63 EM HOLDER WITH SLITTING 16 105 | 45 | 16 | 79 | 105 | M6X16 | 1.55 | B2200 |
| F1T063X-EMT20110 | HSK T63 EM HOLDER WITH SLITTING 20 105 | 53 | 20 | 84 | 110 | M6X20 | 1.92 | B2200 |
| F1T063X-EMT25130 | HSK T63 EM HOLDER WITH SLITTING 25 130 | 53 | 25 | 104 | 130 | M6X20 | 2.06 | B2200 |
| F1T063X-EMT32155 | HSK T63 EM HOLDER WITH SLITTING 32 130 | 63 | 32 | 129 | 155 | M8X20 | 2.82 | B2200 |
| F1T063X-EMT40187 | HSK T63 EM HOLDER WITH SLITTING 40 187 | 70 | 40 | 161 | 187 | M8X20 | 4.07 | B2200 |
