Adaptor - FWE 1B

Quick change adaptors without safety clutch from Falcon Toolings are specially designed to deliver the same machining operation as other adaptors. These tool holders are used to enhance the high precision toolings without exceeding the desired tolerance limit. FWE 1B adaptors are fitted with a Quick change tapping chuck to maximize the machine efficiency and reliability on CNC Lathe, CNC Milling, Manual Lathe and Drilling machines.

Though the adaptor is equipped without a safety clutch, FWE 1B is manufactured to operate without reducing the product quality and product finish. These holders are suitable for quick tap change and the tap breakage that occurs during the process is less. FWE 1B adaptors can hold the Taps ranging from M3 to M12. The shank diameter and tap square size decides the tap adaptor selection.

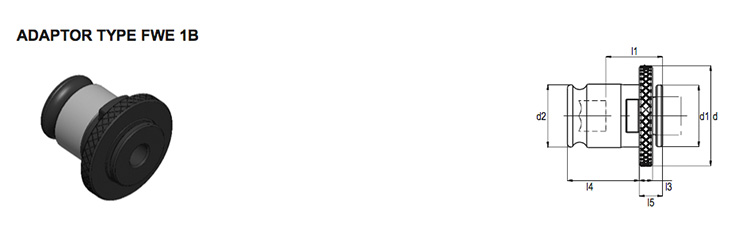

Adaptor Range	Tap Range	d	d1	d2	l1	l3	l4	l5
FWE 1B	M3-M12	30	19	19	17	4	21.5	7



S.No.	Part No.	Description	DIA	SQ	Kgs	Group
1	F18811-77101	FWE1B Ø 2.5 SQ 2.1	2.5	2.1	0.07	B7000
2	F18811-77103	FWE1B Ø 2.8 SQ 2.1	2.8	2.1	0.07	B7000
3	F18811-77105	FWE1B Ø 3.15 SQ 2.5	3.15	2.5	0.07	B7000
4	F18811-77107	FWE1B Ø 3.5 SQ 2.7	3.5	2.7	0.07	B7000
5	F18811-77109	FWE1B Ø 3.55 SQ 2.8	3.55	2.8	0.07	B7000
6	F18811-77111	FWE1B Ø 4 SQ 3	4	3	0.06	B7000
7	F18811-77114	FWE1B Ø 4 SQ 3.15	4	3.15	0.06	B7000
8	F18811-77116	FWE1B Ø 4 SQ 3.2	4	3.2	0.06	B7000
9	F18811-77117	FWE1B Ø 4.5 SQ 3.4	4.5	3.4	0.06	B7000
10	F18811-77119	FWE1B Ø 4.5 SQ 3.55	4.5	3.55	0.06	B7000
11	F18811-77120	FWE1B Ø 5 SQ 4	5	4	0.06	B7000
12	F18811-77123	FWE1B Ø 5.5 SQ 4.5	5.5	4.5	0.06	B7000
13	F18811-77125	FWE1B Ø 5.6 SQ 4.5	5.6	4.5	0.06	B7000
14	F18811-77126	FWE1B Ø 6 SQ 4.5	6	4.5	0.06	B7000
15	F18811-77127	FWE1B Ø 6 SQ 4.9	6	4.9	0.06	B7000
16	F18811-77132	FWE1B Ø 6.2 SQ 5	6.2	5	0.06	B7000
17	F18811-77134	FWE1B Ø 6.3 SQ 5	6.3	5	0.06	B7000
18	F18811-77136	FWE1B Ø 7 SQ 5.5	7	5.5	0.06	B7000
19	F18811-77138	FWE1B Ø 7.1 SQ 5.6	7.1	5.6	0.06	B7000
20	F18811-77139	FWE1B Ø 8 SQ 6	8	6	0.06	B7000
21	F18811-77140	FWE1B Ø 8 SQ 6.2	8	6.2	0.06	B7000
22	F18811-77142	FWE1B Ø 8 SQ 6.3	8	6.3	0.06	B7000
23	F18811-77144	FWE1B Ø 8.5 SQ 6.5	8.5	6.5	0.06	B7000
24	F18811-77145	FWE1B Ø 9 SQ 7	9	7	0.06	B7000
25	F18811-77146	FWE1B Ø 9 SQ 7.1	9	7.1	0.06	B7000
26	F18811-77147	FWE1B Ø 10 SQ 8	10	8	0.06	B7000
27	F18811-77148	FWE1B Ø 10.5 SQ 8	10.5	8	0.06	B7000
28	F18811-77150	FWE1B Ø 11 SQ 9	11	9	0.06	B7000
29	F18811-77151	FWE1B Ø 11.2 SQ 9	11.2	9	0.06	B7000
