SMX - Face Mill Arbor

BT - Form JD (AD) - G6.3

Send enquiry

Face Mill arbors are used to hold milling cutters from diameter 40 and are used in a large range of rough milling and fine milling applications with good cutting performance and surface finish.

BT 40 - Standard GPL

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B401A-SMX16045	BT40 AD SMX 16 045	40	JD	16	45	17	38	40	1.2	A3000
F1B401A-SMX22045	BT40 AD SMX 22 045	40	JD	22	45	19	48	50 & 63	1.3	A3000
F1B401A-SMX27045	BT40 AD SMX 27 045	40	JD	27	45	21	60	80	1.5	A3000
F1B401A-SMX32050	BT40 AD SMX 32 050	40	JD	32	50	24	70	100	1.8	A3000
F1B401A-SMX40055	BT40 AD SMX 40 055	40	JD	40	55	27	80	125	2.1	A3000

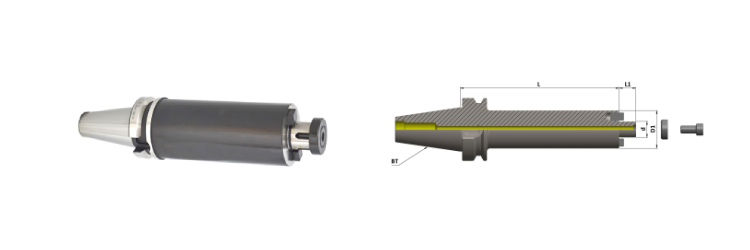

BT 40 - GPL 100mm

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B401A-SMX16100	BT40 AD SMX 16 100	40	JD	16	100	17	38	40	1.6	A3000
F1B401A-SMX22100	BT40 AD SMX 22 100	40	JD	22	100	19	48	50 & 63	2.0	A3000
F1B401A-SM27100	BT40 AD SMX 27 100	40	JD	27	100	21	60	80	2.4	A3000
F1B401A-SMX32100	BT40 AD SMX 32 100	40	JD	32	100	24	70	100	3.2	A3000
F1B401A-SMX40100	BT40 AD SMX 40 100	40	JD	40	100	27	80	125	3.8	A3000

BT 40 - GPL 160mm

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B401A-SMX16160	BT40 AD SMX 16 160	40	JD	16	160	17	38	40	2.1	A3000
F1B401A-SMX22160	BT40 AD SMX 22 160	40	JD	22	160	19	48	50 & 63	2.8	A3000
F1B401A-SMX27160	BT40 AD SMX 27 160	40	JD	27	160	21	60	80	3.6	A3000
F1B401A-SMX32160	BT40 AD SMX 32 160	40	JD	32	160	24	70	100	4.9	A3000
F1B401A-SMX40160	BT40 AD SMX40 160	40	JD	40	160	27	80	125	6.1	A3000

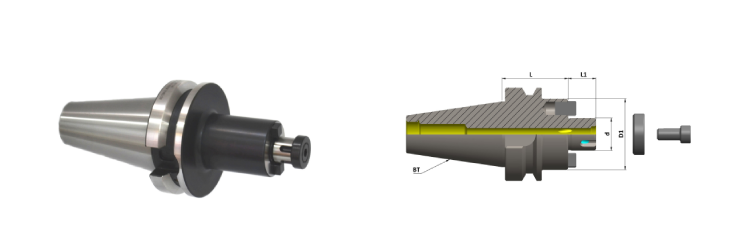

BT 50 - Standard GPL

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B501A - SMX16060	BT50 AD SMX 16 060	50	JD	16	60	17	38	40	3.8	A3000
F1B501A-SMX22060	BT50 AD SMX 22 060	50	JD	22	60	19	48	50 & 63	4.4	A3000
F1B501A-SMX27060	BT50 AD SMX 27 060	50	JD	27	60	21	60	80	4.4	A3000
F1B501A-SMX32060	BT50 AD SMX 32 060	50	JD	32	60	24	70	100	4.6	A3000
F1B501A-SMX40060	BT50 AD SMX 40 060	50	JD	40	60	27	80	125	4.9	A3000

BT 50 - GPL 100mm

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B501A-SMX16100	BT50 AD SMX 16 100	50	JD	16	100	17	38	40	4.20	A3000
F1B501A-SMX22120	BT50 AD SMX 22 120	50	JD	22	100	19	48	50 & 63	4.51	A3000
F1B501A-SMX27105	BT50 AD SMX 27105	50	JD	27	100	21	60	80	4.90	A3000
F1B501A-SMX32100	BT50 AD SMX 32 100	50	JD	32	100	24	70	100	5.40	A3000
F1B501A-SMX40105	BT50 AD SMX 40 105	50	JD	40	100	27	80	125	6.20	A3000

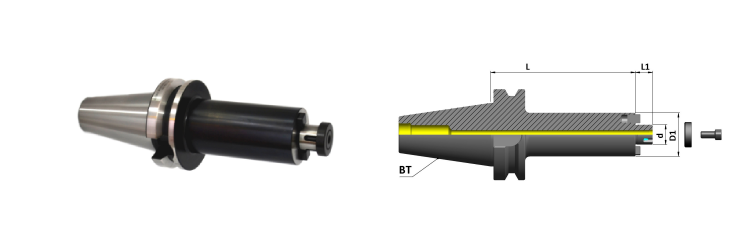

BT 50 - GPL 160mm

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B501A-SMX22160	BT50 AD SMX 22 160	50	JD	22	160	19	48	50 & 63	5.3	A3000
F1B501A-SMX27160	BT50 AD SMX 27 160	50	JD	27	160	21	60	80	6.1	A3000
F1B501A-SMX32160	BT50 AD SMX 32 160	50	JD	32	160	24	70	100	7.2	A3000
F1B501A-SMX40160	BT50 AD SMX 40 160	50	JD	40	160	27	80	125	8.7	A3000

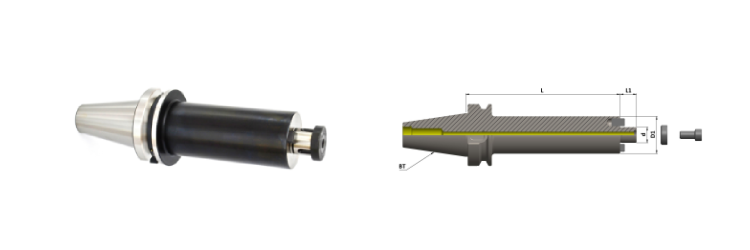

BT 50 - GPL 200mm

Part No.	Product Name	Taper	Form	d.	L	L1	D1	Cutter Dia	Kgs	Group
F1B501A-SMX22200	BT50 AD SMX 22 200	50	JD	22	200	19	48	50 & 63	5.8	A3000
F1B501A-SMX27200	BT50 AD SMX 27 200	50	JD	27	200	21	60	80	7.03	A3000
F1B501A-SMX32200	BT50 AD SMX 32 200	50	JD	32	200	24	70	100	8.40	A3000
F1B501A-SMX40200	BT50 AD SMX 40 200	50	JD	40	200	27	80	125	9.9	A3000

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
