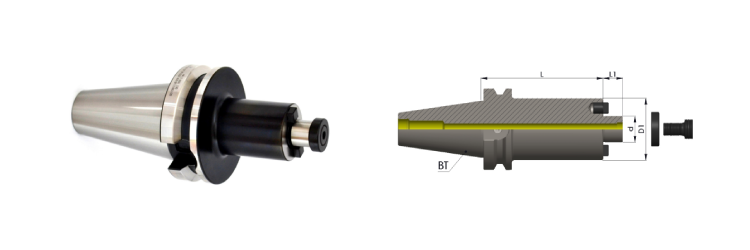

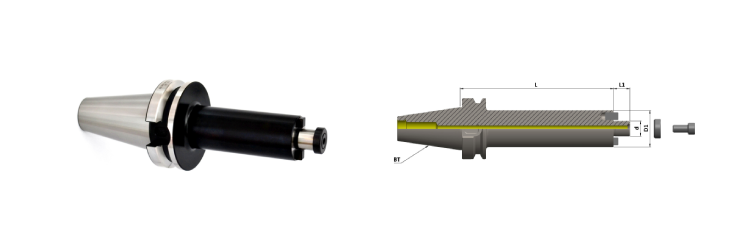

Face Mill arbors are used to hold milling cutters from diameter 40 and are used in a large range of rough milling and fine milling applications with good cutting performance and surface finish.
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B301A-SMS16050 | BT30 AD SMS 16 050 | 30 | JD | 16 | 50 | 17 | 38 | 40 | 0.6 | A3000 |
| F1B301A-SMS22050 | BT30 AD SMS 22 050 | 30 | JD | 22 | 50 | 19 | 48 | 50 & 63 | 0.8 | A3000 |
| F1B301A-SMS27050 | BT30 AD SMS 27 050 | 30 | JD | 27 | 50 | 21 | 60 | 80 | 1 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B401A-SMS16045 | BT40 AD SMS 16 045 | 40 | JD | 16 | 45 | 17 | 38 | 40 | 1.2 | A3000 |
| F1B401A-SMS22045 | BT40 AD SMS 22 045 | 40 | JD | 22 | 45 | 19 | 48 | 50 & 63 | 1.5 | A3000 |
| F1B401A-SMS27045 | BT40 AD SMS 27 045 | 40 | JD | 27 | 45 | 21 | 60 | 80 | 1.4 | A3000 |
| F1B401A-SMS32050 | BT40 AD SMS 32 050 | 40 | JD | 32 | 50 | 24 | 70 | 100 | 2 | A3000 |
| F1B401A-SMS40055 | BT40 AD SMS 40 055 | 40 | JD | 40 | 55 | 27 | 80 | 125 | 2.5 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B401A-SMS16100 | BT40 AD SMS16 100 | 40 | JD | 16 | 100 | 17 | 38 | 40 | 1.5 | A3000 |
| F1B401A-SMS22100 | BT40 AD SMS 22 100 | 40 | JD | 22 | 100 | 19 | 48 | 50 & 63 | 2.0 | A3000 |
| F1B401A-SMS27100 | BT40 AD SMS 27 100 | 40 | JD | 27 | 100 | 21 | 60 | 80 | 2.8 | A3000 |
| F1B401A-SMS32100 | BT40 AD SMS 32 100 | 40 | JD | 32 | 100 | 24 | 70 | 100 | 3.2 | A3000 |
| F1B401A-SMS40100 | BT40 AD SMS 40 100 | 40 | JD | 40 | 100 | 27 | 80 | 125 | 3.7 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B401A-SMS16160 | BT40 AD SMS16 160 | 40 | JD | 16 | 160 | 17 | 38 | 40 | 1.8 | A3000 |
| F1B401A-SMS22160 | BT40 AD SMS 22 160 | 40 | JD | 22 | 160 | 19 | 48 | 50 & 63 | 2.3 | A3000 |
| F1B401A-SMS27160 | BT40 AD SMS 27 160 | 40 | JD | 27 | 160 | 21 | 60 | 80 | 3.1 | A3000 |
| F1B401A-SMS32160 | BT40 AD SMS 32 160 | 40 | JD | 32 | 160 | 24 | 70 | 100 | 3.6 | A3000 |
| F1B401A-SMS40160 | BT40 AD SMS40 160 | 40 | JD | 40 | 160 | 27 | 80 | 125 | 3.9 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B501A - SMS16060 | BT50 AD SMS 16 060 | 50 | JD | 16 | 60 | 17 | 38 | 40 | 4.2 | A3000 |
| F1B501A-SMS22060 | BT50 AD SMS 22 060 | 50 | JD | 22 | 60 | 19 | 48 | 50 & 63 | 4.2 | A3000 |
| F1B501A-SMS27060 | BT50 AD SMS 27 060 | 50 | JD | 27 | 60 | 21 | 60 | 80 | 4.2 | A3000 |
| F1B501A-SMS32060 | BT50 AD SMS 32 060 | 50 | JD | 32 | 60 | 24 | 70 | 100 | 4.4 | A3000 |
| F1B501A-SMS40060 | BT50 AD SMS 40 060 | 50 | JD | 40 | 60 | 27 | 80 | 125 | 4.8 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B501A-SMS16100 | BT50 AD SMS 16 100 | 50 | JD | 16 | 100 | 17 | 38 | 40 | 4.2 | A3000 |
| F1B501A-SMS22120 | BT50 AD SMS 22 120 | 50 | JD | 22 | 100 | 19 | 48 | 50 & 63 | 4.5 | A3000 |
| F1B501A-SMS27105 | BT50 AD SMS 27105 | 50 | JD | 27 | 100 | 21 | 60 | 80 | 4.9 | A3000 |
| F1B501A-SMS32100 | BT50 AD SMS 32 100 | 50 | JD | 32 | 100 | 24 | 70 | 100 | 5.4 | A3000 |
| F1B501A-SMS40105 | BT50 AD SMS 40 105 | 50 | JD | 40 | 100 | 27 | 80 | 125 | 6.2 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B501A-SMS22160 | BT50 AD SMS 22 160 | 50 | JD | 22 | 160 | 19 | 48 | 50 & 63 | 5.3 | A3000 |
| F1B501A-SMS32160 | BT50 AD SMS 32 160 | 50 | JD | 32 | 160 | 24 | 70 | 100 | 7.2 | A3000 |
| F1B501A-SMS27160 | BT50 AD SMS 27 160 | 50 | JD | 27 | 160 | 21 | 60 | 80 | 6.1 | A3000 |
| F1B501A-SMS40160 | BT50 AD SMS 40 160 | 50 | JD | 40 | 160 | 27 | 80 | 125 | 8.5 | A3000 |
| Part No. | Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|---|
| F1B501A-SMS22200 | BT50 AD SMS 22 200 | 50 | JD | 22 | 200 | 19 | 48 | 50 & 63 | 5.8 | A3000 |
| F1B501A-SMS27200 | BT50 AD SMS 27 200 | 50 | JD | 27 | 200 | 21 | 60 | 80 | 7.03 | A3000 |
| F1B501A-SMS32200 | BT50 AD SMS 32 200 | 50 | JD | 32 | 200 | 24 | 70 | 100 | 8.40 | A3000 |
| F1B501A-SMS40200 | BT50 AD SMS 40 200 | 50 | JD | 40 | 200 | 27 | 80 | 125 | 10.00 | A3000 |
| Part No. | D | L | L1 | G | d. | Allen Key | FIG | Remarks | Group |
|---|---|---|---|---|---|---|---|---|---|
| F1CCSN-22M10 | 28 | 26 | 8 | M10 | - | 6mm | 1 | NORMAL | D4400 |
| F1CCSN-16M08 | 20 | 23 | 7 | M8 | - | 5mm | 1 | NORMAL | D4400 |
| F1CCSN-27M12 | 35 | 31 | 9 | M12 | - | 8mm | 1 | NORMAL | D4400 |
| F1CCSN-32M16 | 42 | 36 | 10 | M16 | - | 10mm | 1 | NORMAL | D4400 |
| F1CCSN-40M20 | 52 | 41 | 11 | M20 | - | 12mm | 1 | NORMAL | D4400 |
| F1CCSN-60M30 | 75 | 60 | 15 | M30 | - | 17mm | 1 | NORMAL | D4400 |
| F1CCSN-50M24 | 75 | 49 | 13 | M24 | - | 14mm | 1 | NORMAL | D4400 |
| F1CCST-22M10 | 28 | 33 | 8 | M10 | 3.2 | 6mm | 2 | THRU COOLANT | D4400 |
| F1CCST-16M08 | 20 | 32 | 7 | M8 | 2.5 | 5mm | 2 | THRU COOLANT | D4400 |
| F1CCST-27M12 | 35 | 44 | 9 | M12 | 3.2 | 8mm | 2 | THRU COOLANT | D4400 |
| F1CCST-32M16 | 42 | 45 | 10 | M16 | 3.2 | 10mm | 2 | THRU COOLANT | D4400 |
| F1CCST-40M20 | 52 | 51 | 11 | M20 | 3.2 | 12mm | 2 | THRU COOLANT | D4400 |
Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
