DCH - Drill Chuck Adaptor (DIN 238)

Falcon offers modular drill chuck holders for holding JT (Jacob Taper) Drill chuck. It is available in both SK40 and SK50 tapers. Drill clamping range is from 0.8mm up to 13mm

SK 40 SK 50 Spares

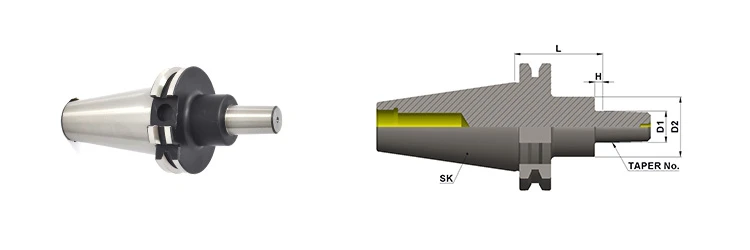

SK 40 - Standard GPL

Part No.	Product Name	Taper	Form	Taper No.	L	Champing Range	D1	D2	H	Kgs	Group
F1S405X-JTA06045	SK40 A JTA 06 045	40	A	JTA6	45	0.8 - 13	17.17	30	4	1.1	B5500
F1S405X-DCB16045	SK40 A B16 045	40	A	B16	45	0.8 - 13	15.73	30	4	1.1	B5500

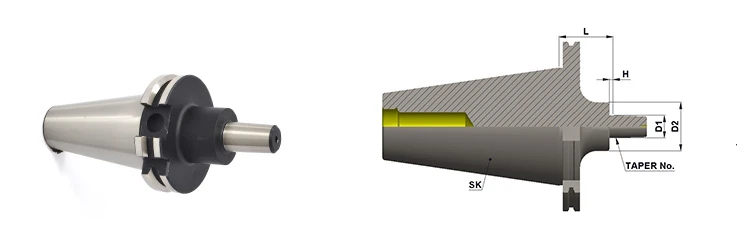

SK 50 – Standard GPL

Part No.	Product Name	Taper	Form	Taper No.	L	Champing Range	D1	D2	H	Kgs	Group
F1S505X-JTA06045	SK50 A JTA 06 045	50	A	JTA6	45	0.8 - 13	17.17	30	3.2	3.7	B5500
F1S505X-DCB16045	SK50 A B16 045	50	A	B16	45	0.8 - 13	15.73	30	4	3.7	B5500

Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
