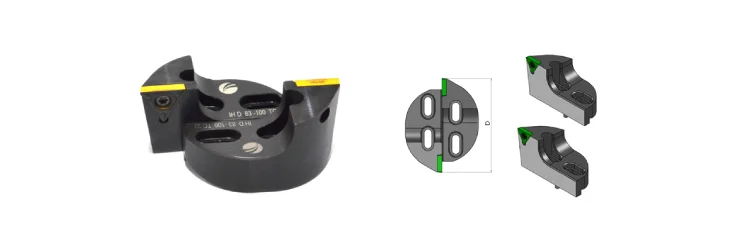

IHDR Insert Holders

IHDR Insert Holder from Falcon Toolings delivers the best-minimized tolerance in tool machining works. Cartridges are mostly preferred in Twin Edge Boring Bars for maximizing the precision and accuracy of the tooling works. The tolerance level in the boring bars is controlled within the desired possible outcome. Twin edge rough boring bar enhances the performance of the CNC machining works to the maximum level.

These insert holders maximize the machining efficiency by having a firm holding of carbide and various types of inserts that are used in the tooling industries. Twin edge boring bars are designed for prolonged service duration. These holders are suitable for machining continuously under controlled tolerances with less idle time.



Insert Holders

Part No.	Product name	Boring Range - d	Insert Type	Torque for Tightening Slide	Allen Screw for Slide Locking	Insert Screw	Torque for Tightening Insert screw	Kgs	Group
F1IHDRX-025032C06	INSERT HOLDER DIA 025 - 032 CCMT 06	25 - 32	CCMT 06 02 08	4.8	M4X10	(M2.5)	0.9	0.02	B6000
F1IHDRX-030038C06	INSERT HOLDER DIA 030 - 038 CCMT 06	30 - 38	CCMT 06 02 08	4.8	M4X10	(M2.5)	0.9	0.04	B6000
F1IHDRX-037047T11	INSERT HOLDER DIA 037 - 047 TCMT11	37 - 47	TCMT 11 02 08	4.8	M4X20	(M2.5)	0.9	0.08	B6000
F1IHDRX-046056T16	INSERT HOLDER DIA 046 - 056 TCMT16	46 - 56	TCMT 16 T3 08	9	M5X25	(M3.5)	3	0.16	B6000
F1IHDRX-055070T16	INSERT HOLDER DIA 055 - 070 TCMT16	55 – 70	TCMT 16 T3 08	16	M6X30	(M3.5)	3	0.22	B6000
F1IHDRX-069085T16	INSERT HOLDER DIA 069 - 085 TCMT16	69 - 85	TCMT 16 T3 08	16	M6X30	(M3.5)	3	0.39	B6000
F1IHDRX-083101T16	INSERT HOLDER DIA 083 - 101 TCMT16	83 - 101	TCMT 16 T3 08	16	M6X30	(M3.5)	3	0.50	B6000
F1IHDRX-083101T22	INSERT HOLDER DIA 083 - 101 TCMT22	83 - 101	TCMT 22 04 08	16	M6X30	(M5.0)	3	0.48	B6000
F1IHDRX-099126T16	INSERT HOLDER DIA 099 - 126 TCMT16	99 - 126	TCMT 16 T3 08	38	M8X25	(M3.5)	3	0.80	B6000
F1IHDRX-099126T22	INSERT HOLDER DIA 099 - 126 TCMT22	99 - 126	TCMT 22 04 08	38	M8X25	(M5.0)	3	0.78	B6000
F1IHDRX-123150T16	INSERT HOLDER DIA 123 - 150 TCMT16	123 - 150	TCMT 16 T3 08	38	M8X25	(M3.5)	3	0.88	B6000
F1IHDRX-123150T22	INSERT HOLDER DIA 123 - 150 TCMT22	123 - 150	TCMT 22 04 08	38	M8X25	(M5.0)	3	0.90	B6000
F1IHDRX-148190T16	INSERT HOLDER DIA 148 - 190 TCMT16	148 - 190	TCMT 16 T3 08	75	M10X30	(M3.5)	3	2.34	B6000
F1IHDRX-148190T22	INSERT HOLDER DIA 148 - 190 TCMT22	148 - 190	TCMT 22 04 08	75	M10X30	(M5.0)	3	2.32	B6000
F1IHDRX-188230T16	INSERT HOLDER DIA 188 - 230 TCMT16	188 - 230	TCMT 16 T3 08	75	M10X30	(M3.5)	3	2.92	B6000
F1IHDRX-188230T22	INSERT HOLDER DIA 188 - 230 TCMT22	188 - 230	TCMT 22 04 08	75	M10X30	(M5.0)	3	2.90	B6000
F1IHDRX-228270T16	INSERT HOLDER DIA 228 - 270 TCMT 16	228 - 270	TCMT 16 T3 08	75	M10X30	(M3.5)	3	3.52	B6000
F1IHDRX-228270T22	INSERT HOLDER DIA 228 - 270 TCMT 22	228 - 270	TCMT 22 04 08	75	M10X30	(M5.0)	3	3.50	B6000
